Create a versatile outdoor living space with this Aluminum Outdoor Pergola with Motorized Adjustable Louvers. Designed for patios, gardens, backyards, balconies, and commercial outdoor areas, this contemporary pergola features an adjustable louvered roof that allows you to control sunlight, shade, and overhead coverage throughout the day.
Constructed from durable aluminum alloy, the pergola features a weather-resistant design engineered for exposure to rain, wind, and snow. Motorized configurations offer remote-controlled louver adjustments, while manual operation is also available. With multiple sizes, customizable finishes, and optional accessories, this aluminum pergola can be configured to complement a variety of residential and commercial outdoor spaces.
Key Benefits
-
Motorized Adjustable Louvers: Electrically operated roof louvers allow convenient adjustment of sunlight, shade, and overhead coverage using a remote control.
-
Durable Aluminum Alloy Construction: Aluminum alloy posts, beams, and roof blades provide structural support and resistance to outdoor conditions.
-
Rainproof Roof Design: Adjustable louvers provide overhead rain protection when positioned in the closed configuration.
-
High Wind Resistance: Designed for wind resistance rated between approximately 112 and 137 mph, depending on configuration.
-
Snow Load Capability: Manufacturer-listed snow loading range of approximately 24–39 inches, depending on configuration.
-
Customizable Sizes and Finishes: Available in multiple dimensions with optional RAL colors and wood-grain finishes.
-
Optional Smart Weather Features: Rain and wind sensors are available for compatible pergola configurations.
-
Flexible Outdoor Applications: Suitable for residential patios, gardens, poolside areas, rooftop spaces, and restaurant outdoor seating.
Product Details
-
Product Type: Outdoor aluminum louvered pergola
-
Primary Material: Aluminum alloy
-
Post Material: Aluminum alloy 6063-T5
-
Beam Material: Aluminum alloy 6063-T5
-

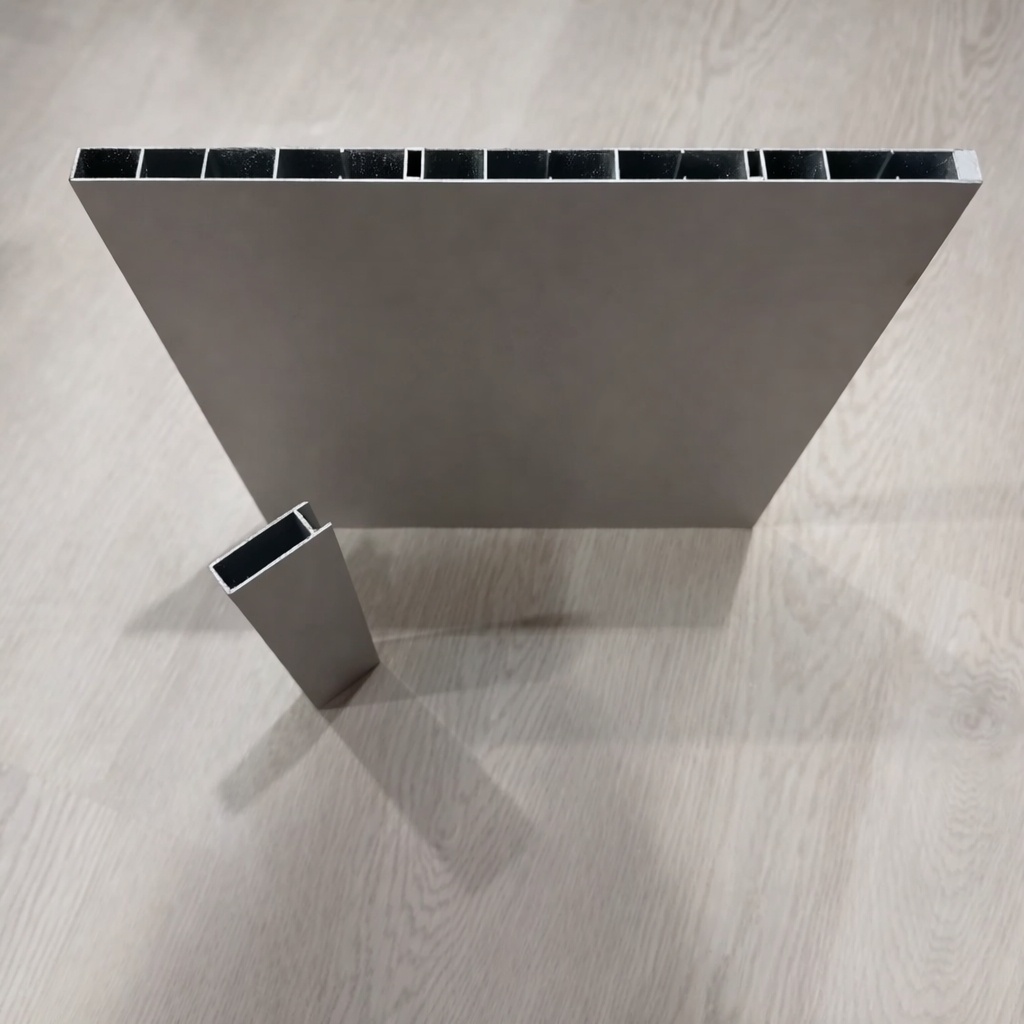

Louver Blade Material: Aluminum alloy 6005-T5
-
Gutter Dimensions: Approximately 3.94 × 3.94 × 0.08 inches
-
Roof Type: Adjustable aluminum louvers
-
Control Options: Motorized or manual
-
Motorized Operation: Remote control
-
Motor Options: 600 N or 900 N
-
Wind Resistance: Approximately 112–137 mph
-
Manufacturer-Listed Snow Loading: Approximately 24–39 inches
-
Maximum Span: Approximately 19.69 ft
-
Louver Blade Options: 5 available designs
-
Finish Options: Custom RAL colors and wood-grain finishes
-
Weather Protection: Rainproof, sunshade, wind-resistant, and snow-resistant design
-
Installation: Required
-
Installation Resources: Detailed drawings and installation video provided
-
Recommended Locations: Patios, balconies, gardens, backyards, rooftops, decks, poolside areas, villas, and restaurant outdoor spaces
Available Standard Sizes
The manufacturer lists the following popular pergola dimensions:
| Width × Depth × Height |
|---|
| 9.84 × 9.84 × 8.20 ft |
| 13.12 × 9.84 × 8.20 ft |
| 16.40 × 9.84 × 8.20 ft |
| 19.69 × 9.84 × 8.20 ft |
Custom dimensions are also available.
Optional Features & Accessories
The following features are available depending on the selected configuration and are not confirmed as included with the standard pergola:
-

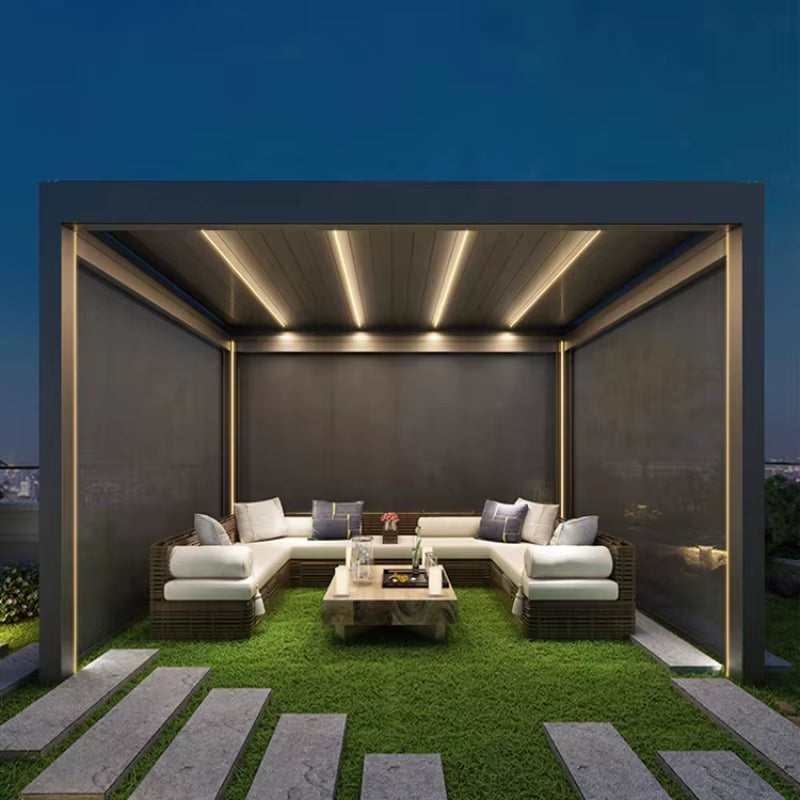

LED lighting
-
Rain and wind sensors
-
Side screens and curtains
-
Side shutters
-
Heaters and fans
-
Glass doors
-
Additional supporting posts
-
Custom colors and wood-grain finishes
Warranty
-
Powder-Coated Finish: 5-year warranty against color fading
-
PVDF Finish: Manufacturer-listed warranty of more than 10 years against color fading
Warranty coverage depends on the selected finish.
Assembly & Maintenance
-
Installation: Assembly and installation are required. Detailed installation drawings and a video are provided.
-
Routine Cleaning: Clean aluminum surfaces and roof louvers periodically using a soft cloth and mild cleaning solution.
-
Drainage Maintenance: Keep gutter channels clear of leaves and outdoor debris.
-
Motorized Components: Follow the manufacturer's instructions for operating and maintaining the electric louver system.
